Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw

Product Categories
Shandong Honest Machinery Co., Ltd.
Contact Now

Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw

Brand Name : Honest

Model Number : 1530

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 16800$-30000$ per one set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance

Supply Ability : 20 per a month

Delivery Time : 10-20 wooking days

Packaging Details : wooden package

Cutting thickness : 0-30mm

Control software : Cypcut

Application : Laser Cutting

Warranty : 1 Year

Cutting area : 3000*1500mm

After-sales service provided : Engineers available to service machinery overseas

Function : Cutting Metal Materials

Laser source : Raycus or IPG or Max

Contact Now

2kw 3kw 4kw 5kw 6kw 3015 Metal Plate And Tube Integrated Fiber Laser Cut Machine
Product Description
The stability of high fiber laser cutting machine: the world's top imported fiber laser, stable performance and can be used for 100000 hours; Optical fiber laser cutting machine excellent beam quality, focused spot is very small, the cutting line is more sophisticated, more productive, processing quality is better; The fiber laser cutting machine, low cost with semiconductor optical fiber laser medium, without gas laser, green environmental protection;
Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw
Model
HN-3015/HN-2040/HN-2060
Working are
3000mm*1500mm
Miximum length of pipe(Options)
3000mmor6000mm
Limits of pipe(Customized)
Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type
Fiber laser generator
Laser power(optional)
500~2000W
Transmission system
Double serve motor ＆gantry＆rack＆pinion
Pipe cutting system(optional)
Yes
Maximum speed
100m/min
Maximum accelerated speed
1.0G
Position accuracy
±0.15mm/1000mm
Reposition accuracy
±0.02mm/1000mm
Graphic format supported
CAD,DXF(etc)
Working environment
Temp:0-40℃,humidity:≤80%,No condensation
Total power
10KW
Power supply
380V/50Hz/60Hz
Overall dimension(include cutting machine in 3 meters long)
4350mm*3200mm*1740mm
Overall dimension(include cutting machine in 6 meters long)
7650mm*3200mm*1740mm

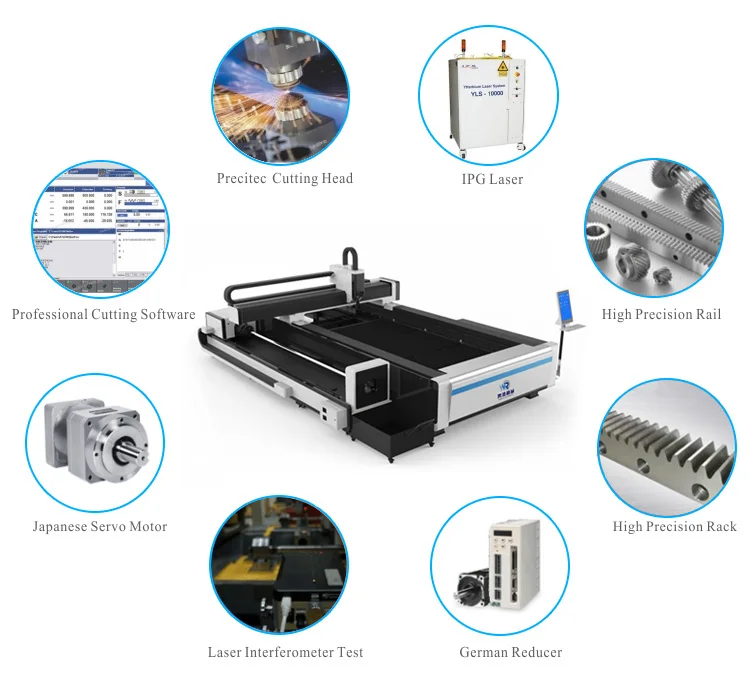

product details
Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw
Heavy-duty Welding Bed The heavy-duty welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1000kg. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once. Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail. It reduces the loss of the equipment when it is used and keeps the precision of the machine for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.

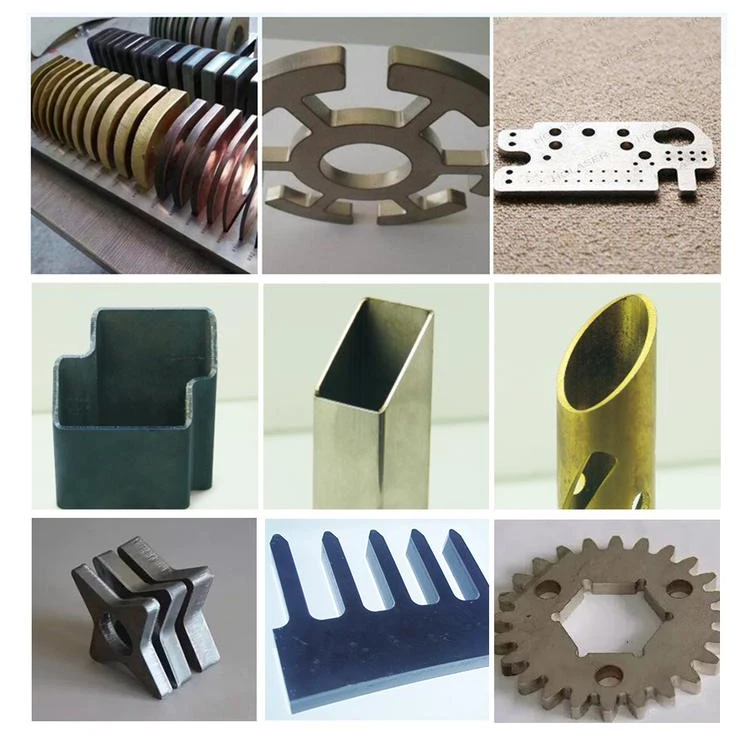

sample
Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw
It can cut a variety of metal plates and pipes, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized steel, various alloy plates, rare metals and other materials; Widely used in: kitchen electrical, sheet metal chassis, machine frame equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and processing industries;
Packaging＆Shipping
Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 3-20 working days after payment.
Certifications
Metal Plate Fiber Laser Cutting Machine Integrated 2kw 3kw 4kw 5kw 6kw
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
